Conveyor belt systems and STS Friction – the combination for your success!

Ceramic pulley linings manufactured by STS Friction – sophisticated technologies for optimum economy

Ultimate economy, productivity and maximum system availability are the basic requirements for operating
successfully in the market. Particularly when it comes to material handling technology, it is important to match
a high throughput capacity with maximum operational reliability and to minimise maintenance times.

With its STS 4000 material, STS Friction GmbH is an efficient and creative partner to meet exactly these customer requirements. STS 4000 ceramic drive-pulley lining is the optimum overall solution for conveyor belt systems and offers the following outstanding properties:

Specific application characteristics:

  • Reduced downtimes enable maximum system availability

  • Maximum belt capacity utilisation coupled with extended belt life expectancy on account of reduced belt tension

  • Trouble-free operation due to high resistance to atmospheric conditions as well as thermal, mechanical and chemical influencing factors

  • Optimum robustness prevents belt slippage and overheating

Our RenoLin® process also permits a marked reduction in servicing times. The key advantages are as follows:

  • We deliver a significant reduction in maintenance and operating costs

  • Your conveyor system runs smoothly and extremely efficiently – including in the mining industry

  • We have extended the life expectancy by up to three times in comparison with rubber linings

STS 4000 – a summary of the application profile:

  • Particularly high coefficient of friction

  • Enormous wear resistance

  • High dimensional stability

  • Outstanding running properties under emergency conditions

  • Extensive application temperature range

  • Thermal, mechanical and chemical resistance

  • Optimum weather resistance

  • Lining repair or replacement using our RenoLin® process – can of course also be carried out on site

  • With ATEX approval these products can also be relied on for mining-industry applications

Influence of the pulley lining’s coefficient of friction

Grafik1_eng

Coefficients of friction between rubber belt and drive pulleys

BetriebsbedingungenUncoated steelRubber lining
dry0,25 µ bis 0,35 µ0,30 µ bis 0,40 µ0,80 µ bis 0,90 µ
wet0,10 µ bis 0,15 µ0,20 µ bis 0,30 µ0,60 µ bis 0,70 µ
loamy-wet0,05 µ bis 0,10 µ0,10 µ bis 0,20 µ0,40 µ bis 0,60 µ

Results

Grafik2_eng
Grafik3_eng
Grafik4_eng

Advantages of STS 4000 for reducing the operating and maintenance costs

  • The service life is up to three times that of rubber linings

  • Prevention of belt slippage and overheating

  • Pulley life is extended by using RenoLin® to repair or replace the lining

Advantages of the high coefficients of friction of STS 4000. The following features protect the conveyor belts and extend the service life of the belts

  • Reduction of belt pre-tension by up to 87 %

  • Reduction of required belt connection strength by up to 51 %

  • Reduction of required belt tensile force by up to 87 %

  • Increase in bearing life as a result of load reduction by up to 87 %

Material:
Pulley lining based on industrial ceramics

Color:
Anthracite grey

Technical data:
Average coefficients of friction

dry: 0,80 µ
wet: 0,60 µ
loamy-wet: 0,40 µ

Temperature resistance:
-40° C bis 120° C

Compressive strength:
at RT: 30 N/mm²

Shear strength lining/pulley:
at RT: 4,5 N/mm²

bei 120° C: 3,0 N/mm²

Specific weight:
2,0 g/cm³

Resistance:
Oil, salt, weather

Design:
1. Directly bonded to pulley

2. Indirectly attached by bonding to the lining base, which is screwed or welded onto the pulley

3. Cylindrical or crowned shape in standard thicknesses of 10 mm,
12 mm, 15 mm as well as customised thicknesses starting from 8 mm

Areas of application:
In rubber-belt conveyor systems for all types of drive, take-up and tail pulleys,

even under wet and loamy-wet operational conditions

The material key data shown here were ascertained on the basis of STS Friction test methods. In our experience the maximum values shown here cannot always be achieved simultaneously in a particular application.

Given the wide range of applications, types of use and technical conditions, we recommend that, if appropriate, the material should be subjected to practical tests to determine its suitability.

For technical questions relating to your application conditions please contact our technical advisers and engineers.

Attachment options and design of lining bases / iron pans

Grafik5_eng
Grafik6_eng

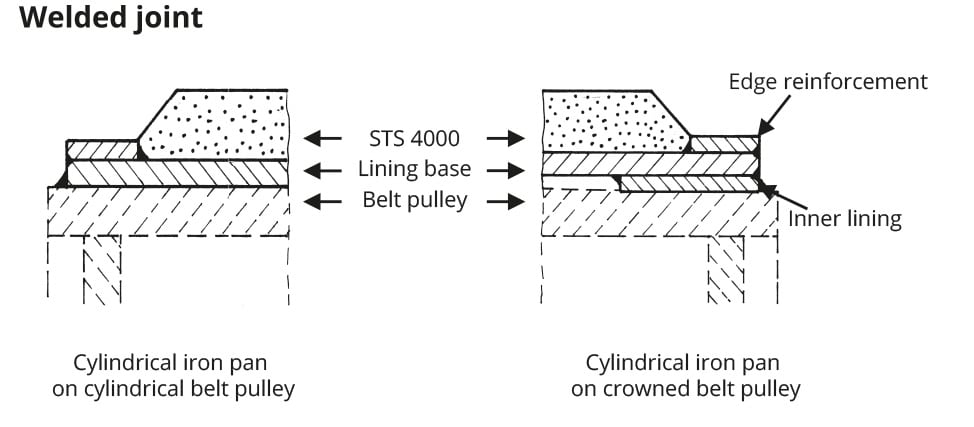

Design of lining bases / iron pans

Grafik7_eng

Common patterns

Rautierung-Typ-H

Type H pattern

Type D pattern

Rautierung-Typ-W

Type W pattern

ohne-rautierung

No pattern

STS 4000 directly or indirectly bonded with and without lining bases

STS4000_1
STS4000_2
STS4000_3
STS4000_4

This makes STS 4000 and RenoLin® the optimum overall solution for modern conveyor belt systems.
